Portable Concrete Mixer

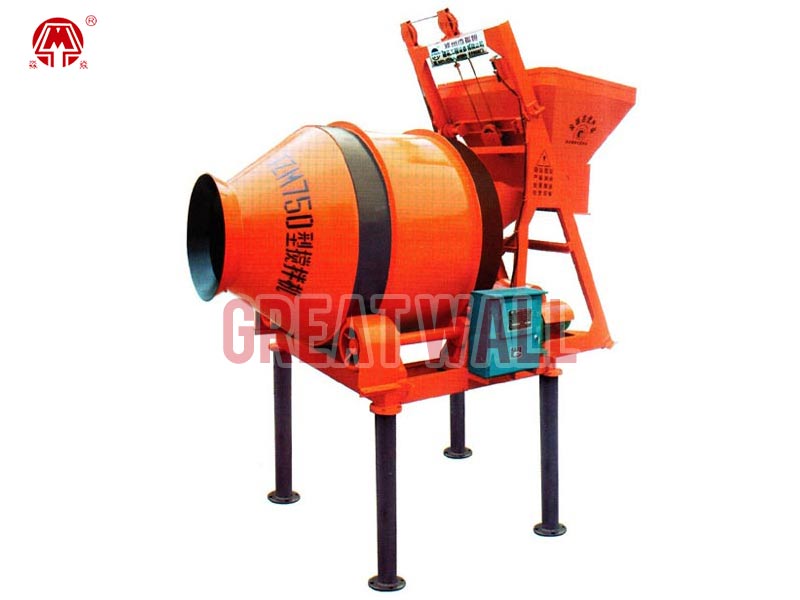

JZM Mobile Concrete Mixer
- Model: JZM series
- Drive Mode: Friction drive
- Capacity: 10-22m3/h
- Maximum Diameter of Aggregate: 60mm/80mm
- Power Source: Electric/Diesel Engine
- Implementation of Standards: GB/T 9142--2000
(※ Click this button to inquiry)
- Concrete Batching Plant
- Commercial Concrete Batching Plant
- Ready Mix Concrete Plant
- Project Concrete Batching Plant
- Belt Conveyor Concrete Batching Plant
- Concrete Mixer Plant
- Precast Concrete Plant
- Mini Concrete Batching Plant
- Concrete Mixing Plant
- HZS180 Concrete Mixing Plant
- HZS120 Concrete Mixing Plant
- HZS90 Concrete Mixing Plant
- HZS60 Concrete Mixing Plant
- HZS50 Concrete Mixing Plant
- HZS35 Concrete Mixing Plant
- HZS25 Concrete Mixing Plant
- HZS75 Concrete Mixing Plant
- JS Concrete Mixer
- JS1000 Concrete Mixer
- JS750 Concrete Mixer
- JS500 Concrete Mixer
- JS1500 Concrete Mixer
- JS2000 Concrete Mixer
- JS3000 Concrete Mixer
- SICOMA Concrete Machinery
- SICOMA Concrete Mixer MAO Standard Series
- SICOMA Concrete Mixer MEO Economical Series
- SICOMA Concrete Mixer MSO Mini Series
- SICOMA Planetary Concrete Mixer
- SICOMA Cement Screw Conveyor
- SICOMA Butterfly Valve
- SICOMA Dust Collector
JZM series concrete mixer can mix plastic and dry-hard concrete, forward stirring and reversal discharging. It adopts rubber roller friction drive ,with low noise ,smooth operation ,convenient to remove ,great mixing quality , high efficiency .It is combined to medium & small scale batching plant with batching machine ,applies to construction site, road, bridge and hydropower etc., especially for urban residential construction. Besides, this model can be driven by electric or diesel engine, to meet the requirements of different construction conditions.
JZM series Concrete Mixer Main Technical Parameters:
| ITEM | JZM350 Mobile | JZM400 Mobile | JZM500 Mobile | JZM750 fixed | |
| Charging Volume | 560L | 640L | 800L | 1200L | |
| Discharging Volume | 350L | 400L | 500L | 750L | |
| productivity | 10-14m3∕h | 13-17m3∕h | 18-20m3∕h | 20-22m3∕h | |
| Maximum Diameter of Aggregate | 60mm | 60mm | 60mm | 80mm | |
| Mixing Drum Rotational Speed | 15r∕min | 14 r∕min | 14 r∕min | 13 r∕min | |
| Power Source | Electric/Diesel Engine | Electric/Diesel Engine | Electric/Diesel Engine | Electric/Diesel Engine | |
| Mixing Motor | Model Power | Y132S-4 | Y132S-4 | Y132S-4-B5 | Y132M-4-B5 |
| 5.5Kw | 5.5Kw | 2×5.5Kw | 2×7.5Kw | ||
| Hoist Motor | Model Power | YEZ132S-4 | YEZ132M-4 | ||
| 4.5Kw | 4.5Kw | 5.5Kw | 7.5Kw | ||
| Water Pump Motor | Model Power | D×B10-36 | D×B10-36 | Y801-2 | Y802-2 |
| 0.75Kw | 0.75Kw | 0.75Kw | 1.1Kw | ||
| Hopper Lifting Speed | 16m∕min | 16m∕min | 18m∕min | 18m∕min | |
| Weight | 2000Kg | 2200Kg | 3800Kg | 4300 Kg | |
| Maximum Towing Speed | 20km∕h | 20km∕h | 20km∕h | ||
| Discharging Height | 800mm | 800mm | 1500mm | 1800mm | |
| Overall Dimensions | 2766mm×2140mm×3000mm | 3800mm×2200mm×2790mm | 5230mm×2300mm×5450mm | 6120mm×2050mm×6270mm | |
