JS Concrete Mixer

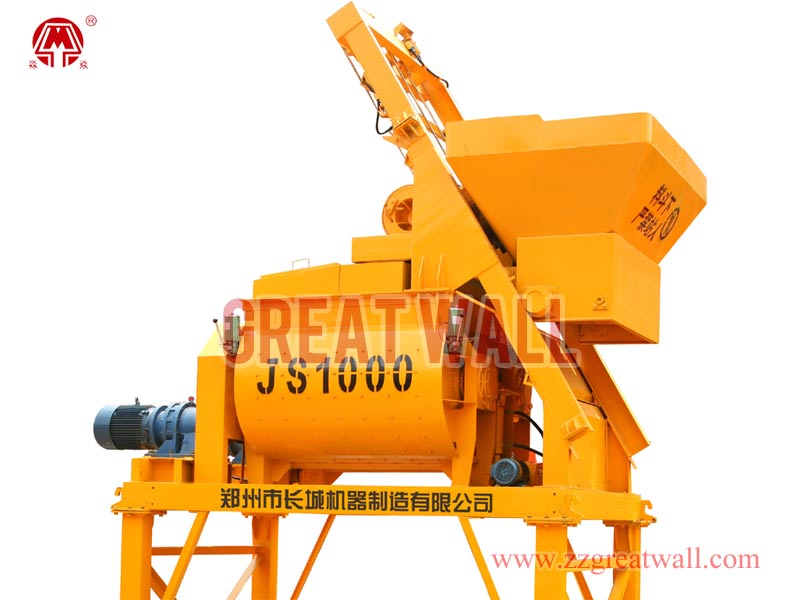

JS1000 Concrete Mixer
- Capacity: 60m3/h
- Discharging Capacity: 1000L
- Drum Capacity: 1600L
- Mixing Motor Power: 18.5kW×2sets
- Winch Motor Power: 15kw
- Standard: GB/T 9142--2000
(※ Click this button to inquiry)
Pre:Back To List
Next:JS750 Concrete Mixer
- Concrete Batching Plant
- Commercial Concrete Batching Plant
- Ready Mix Concrete Plant
- Project Concrete Batching Plant
- Belt Conveyor Concrete Batching Plant
- Concrete Mixer Plant
- Precast Concrete Plant
- Mini Concrete Batching Plant
- Concrete Mixing Plant
- HZS180 Concrete Mixing Plant
- HZS120 Concrete Mixing Plant
- HZS90 Concrete Mixing Plant
- HZS60 Concrete Mixing Plant
- HZS50 Concrete Mixing Plant
- HZS35 Concrete Mixing Plant
- HZS25 Concrete Mixing Plant
- HZS75 Concrete Mixing Plant
- JS Concrete Mixer
- JS1000 Concrete Mixer
- JS750 Concrete Mixer
- JS500 Concrete Mixer
- JS1500 Concrete Mixer
- JS2000 Concrete Mixer
- JS3000 Concrete Mixer
- SICOMA Concrete Machinery
- SICOMA Concrete Mixer MAO Standard Series
- SICOMA Concrete Mixer MEO Economical Series
- SICOMA Concrete Mixer MSO Mini Series
- SICOMA Planetary Concrete Mixer
- SICOMA Cement Screw Conveyor
- SICOMA Butterfly Valve
- SICOMA Dust Collector
Introduction:

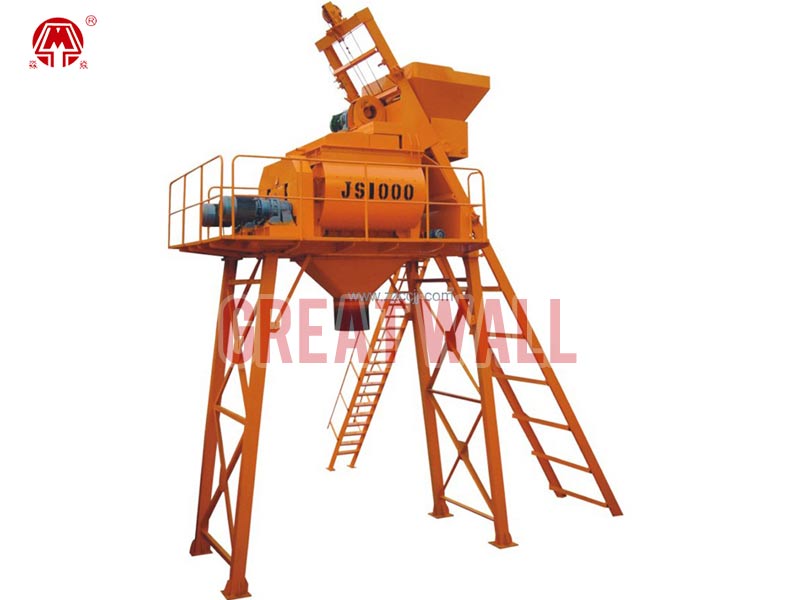

JS1000 is twin shaft horizontal forced type mixer. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar, It has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine, and can also mixer for concrete batching plant. It has JS1000A and JS1000B two models. JS1000A can be used alone or as main mixing part of HZS50 plant . While JS1000B used as main mixing part of HZS60 plant.
Technical details:
1) High mixing evenness, short mixing time, High Reliability with least Break Down, long life span for wearing parts, easy operation and maintenance.
2) Hydraulic discharge，the hydraulic discharging door angle is adjustable.
3) High Wear-Resistant Chromium-Manganese Alloys Plates and Blades
4) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.
5) Automatically lubricating oil pump.
6) Double Motors and Speed Reducers Power:；Motor and speed reducer are of china famous brand. Full Copper Motors, Stable and Long Life.
7) National Standard Steel From China Famous Steel & Iron Companies.
8) Discharge height 2.7m，4.2m optional.
9) Excellent Performance with 11 Tech Patents.
10) China Well-known Trademark, ISO SGS.

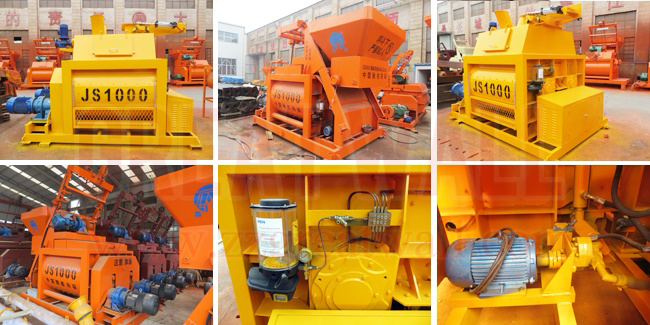

Great Wall JS1000 Concrete Mixer Details:
Our JS1000 Concrete Mixer Workshop:

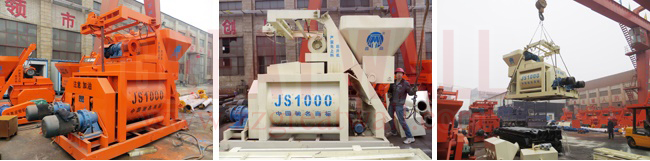

The Delievry of JS1000 Concrete Mixer:
Detail Parameters:
| Model | JS1000A | JS1000B |
| Discharging capacity | 1000L | 1000L |
| Drum capacity | 1600L | 1600L |
| Productivity (m3 /h ) | ≥60 | ≥60 |
| Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤60/80 | ≤60/80 |
| Operation Recycle Time(S) | 60 | 60 |
| Dimension Transport State (mm) | 4320*2200*3300 | 4320*2200*3300 |
| Dimension Work State (mm) | 10460*3400*9050 | |
| Weight(kgs) | 8700 | |
| Mixing Blade Rotate Speed | 29.6r/min | 29.6r/min |
| Mixing Blade Number | 2x8 | 2x8 |
| Mixing Motor Model | Y180M-4 | Y180M-4 |
| Mixing Motor Power | 2*18.5kw | 2*18.5kw |
| Winch Motor Model | YEZ160L-4 | |
| Winch Motor Power | 15kw | |
| Water Pump Motor Model | 80JDB-45 | |
| Water Pump Motor Power | 3kw | |
| MOQ | 1 set | 1 set |
| Delivery Time | 10days | 10days |
| Delivery Port | Qingdao or Tianjin | Qingdao or Tianjin |
Introduction:
JS1000 is twin shaft horizontal forced type mixer. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar, It has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine, and can also mixer for concrete batching plant. It has JS1000A and JS1000B two models. JS1000A can be used alone or as main mixing part of HZS50 plant . While JS1000B used as main mixing part of HZS60 plant.
Technical details:
1) High mixing evenness, short mixing time, High Reliability with least Break Down, long life span for wearing parts, easy operation and maintenance.
2) Hydraulic discharge，the hydraulic discharging door angle is adjustable.
3) High Wear-Resistant Chromium-Manganese Alloys Plates and Blades
4) The shaft end sealing system is by multi-sealing structure effectively prevents leakage and guarantees the continuous long running of whole mixing system.
5) Automatically lubricating oil pump.
6) Double Motors and Speed Reducers Power:；Motor and speed reducer are of china famous brand. Full Copper Motors, Stable and Long Life.
7) National Standard Steel From China Famous Steel & Iron Companies.
8) Discharge height 2.7m，4.2m optional.
9) Excellent Performance with 11 Tech Patents.
10) China Well-known Trademark, ISO SGS.
Great Wall JS1000 Concrete Mixer Details:
Our JS1000 Concrete Mixer Workshop:
The Delievry of JS1000 Concrete Mixer:
Detail Parameters:
| Model | JS1000A | JS1000B |
| Discharging capacity | 1000L | 1000L |
| Drum capacity | 1600L | 1600L |
| Productivity (m3 /h ) | ≥60 | ≥60 |
| Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤60/80 | ≤60/80 |
| Operation Recycle Time(S) | 60 | 60 |
| Dimension Transport State (mm) | 4320*2200*3300 | 4320*2200*3300 |
| Dimension Work State (mm) | 10460*3400*9050 | |
| Weight(kgs) | 8700 | |
| Mixing Blade Rotate Speed | 29.6r/min | 29.6r/min |
| Mixing Blade Number | 2x8 | 2x8 |
| Mixing Motor Model | Y180M-4 | Y180M-4 |
| Mixing Motor Power | 2*18.5kw | 2*18.5kw |
| Winch Motor Model | YEZ160L-4 | |
| Winch Motor Power | 15kw | |
| Water Pump Motor Model | 80JDB-45 | |
| Water Pump Motor Power | 3kw | |
| MOQ | 1 set | 1 set |
| Delivery Time | 10days | 10days |
| Delivery Port | Qingdao or Tianjin | Qingdao or Tianjin |
