Concrete Plants Accessories

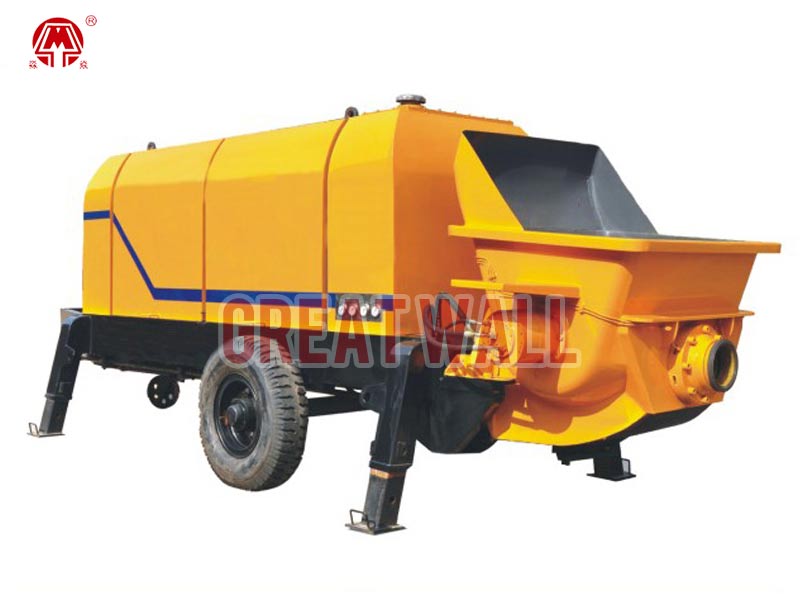

Concrete Pump
- Model: HBT
- Max theoretical throughput of concrete m3/h: 66/40-82/52
- Hopper capacity×Feeding height L×mm: 600×1400
- Diameter of discharge port: Φ180
- The max aggregate size mm: Pebble:50 Gravel:40
- Rated power Kw: 90-162
(※ Click this button to inquiry)
Next:Cement Silo
- Concrete Batching Plant
- Commercial Concrete Batching Plant
- Ready Mix Concrete Plant
- Project Concrete Batching Plant
- Belt Conveyor Concrete Batching Plant
- Concrete Mixer Plant
- Precast Concrete Plant
- Mini Concrete Batching Plant
- Concrete Mixing Plant
- HZS180 Concrete Mixing Plant
- HZS120 Concrete Mixing Plant
- HZS90 Concrete Mixing Plant
- HZS60 Concrete Mixing Plant
- HZS50 Concrete Mixing Plant
- HZS35 Concrete Mixing Plant
- HZS25 Concrete Mixing Plant
- HZS75 Concrete Mixing Plant
- JS Concrete Mixer
- JS1000 Concrete Mixer
- JS750 Concrete Mixer
- JS500 Concrete Mixer
- JS1500 Concrete Mixer
- JS2000 Concrete Mixer
- JS3000 Concrete Mixer
- SICOMA Concrete Machinery
- SICOMA Concrete Mixer MAO Standard Series
- SICOMA Concrete Mixer MEO Economical Series
- SICOMA Concrete Mixer MSO Mini Series
- SICOMA Planetary Concrete Mixer
- SICOMA Cement Screw Conveyor
- SICOMA Butterfly Valve
- SICOMA Dust Collector
• The series of HBT pump is self-developed successful concrete pump,which our company with strong R & D strength combined with long-term experience in the design and manufacture of concrete pumps. It use integrated design,small size, compact structure, smooth operation, low noise, no pollution.It also can work long hours under harsh conditions,the hydraulic oil cooling use advanced air-cooling system, no need water,reasonable overall layout. The pump use curved casing and low frame structure, beautiful, simple.
• The hopper’s feeding height is so low that it is convenient for concrete mixing truck to approach and feed；
• The series of concrete pump use all-hydraulic reversing technology,high quality ,the electronic components from imported have low failure rate ,safe and reliable；
• The series of concrete pump have high efficiency ,fast construction and high quality,which can widely use in a variety of concrete construction operations.
| The Motor | The Diesel Fuel | ||||
| Model | HBT60·13·90S | HBT80·16·110S | HBT80·18·130S | HBT80·13·130RS | HBT80·16·162RS |
| Max theoretical throughput of concrete m3/h | 66/40 | 80/40 | 80 | 82/52 | 81/49 |
| Concrete delivery pressure Mpa | 13/7 | 16/9 | 18/8 | 13/8 | 16/9 |
| The form of distribution valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve | S pipe valve |
| Concrete cylinder specifications×stroke mm | Φ200×1600 | Φ200×1800 | Φ200×1800 | Φ200×1800 | Φ200×1800 |
| Hopper capacity×Feeding height L×mm | 600×1400 | 600×1400 | 600×1400 | 600×1400 | 600×1400 |
| Diameter of discharge port | Φ180 | Φ180 | Φ180 | Φ180 | Φ180 |
| Rated power Kw | 90 | 110 | 132 | 130 | 162 |
| The form of hydraulic circuit | Open circuit | Open circuit | Open circuit | Open circuit | Open circuit |
| High and low pressure switch | Rotary valve | Rotary valve | Rotary valve | Rotary valve | Rotary valve |
| The max aggregate size mm | Pebble:50 Gravel:40 | Pebble:50 Gravel:40 | Pebble:50 Gravel:40 | Pebble:50 Gravel:40 | Pebble:50 Gravel:40 |
| Diameter of concrete delivery | Φ125/Φ150 | Φ125/Φ150 | Φ125/Φ150 | Φ125/Φ150 | Φ125/Φ150 |
| Measurement(L*W*H)(mm) | 6400*2100*2200 | 6400*2100*2200 | 6400*2100*2200 | 6400*2100*2600 | 6400*2100*2600 |
| Weight(kg) | 6000 | 6350 | 6600 | 6600 | 6600 |
