Concrete Plants Accessories

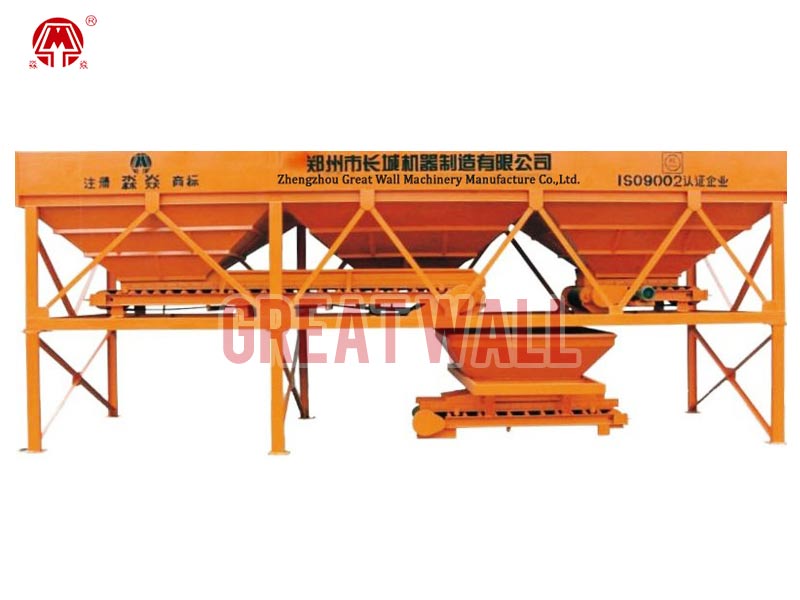

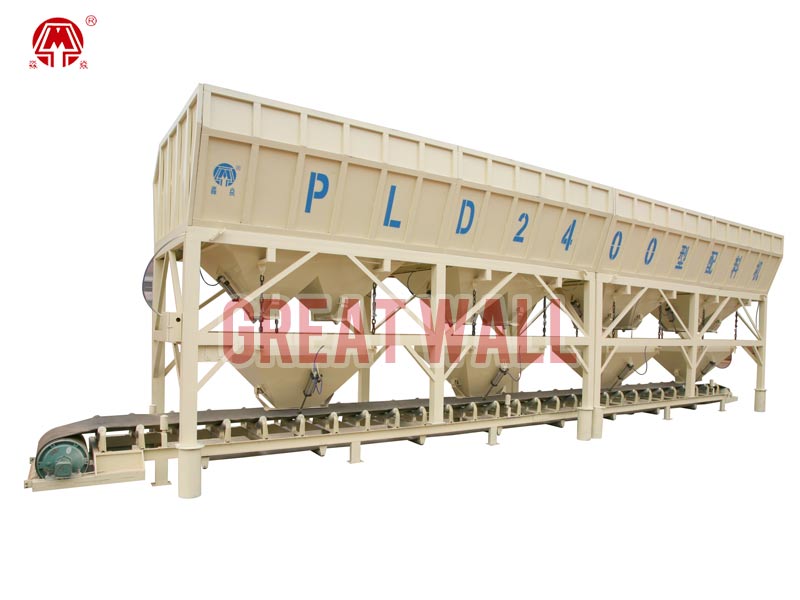

Concrete Batching Machine
- Model: PLD
- Productivity(m3/h ): 18-180
- Weighing Hopper Volume (L ): 600-8000
- Storage Hopper Volume (m3 ): 2.8-92
- Max Weighing(kg): 1400-15000
- Power(KW): 6.6-18.5
(※ Click this button to inquiry)
Pre:Back To List
Next:Diesel Generator Set
- Concrete Batching Plant
- Commercial Concrete Batching Plant
- Ready Mix Concrete Plant
- Project Concrete Batching Plant
- Belt Conveyor Concrete Batching Plant
- Concrete Mixer Plant
- Precast Concrete Plant
- Mini Concrete Batching Plant
- Concrete Mixing Plant
- HZS180 Concrete Mixing Plant
- HZS120 Concrete Mixing Plant
- HZS90 Concrete Mixing Plant
- HZS60 Concrete Mixing Plant
- HZS50 Concrete Mixing Plant
- HZS35 Concrete Mixing Plant
- HZS25 Concrete Mixing Plant
- HZS75 Concrete Mixing Plant
- JS Concrete Mixer
- JS1000 Concrete Mixer
- JS750 Concrete Mixer
- JS500 Concrete Mixer
- JS1500 Concrete Mixer
- JS2000 Concrete Mixer
- JS3000 Concrete Mixer
- SICOMA Concrete Machinery
- SICOMA Concrete Mixer MAO Standard Series
- SICOMA Concrete Mixer MEO Economical Series
- SICOMA Concrete Mixer MSO Mini Series
- SICOMA Planetary Concrete Mixer
- SICOMA Cement Screw Conveyor
- SICOMA Butterfly Valve
- SICOMA Dust Collector
• The series of PLD concrete batching machine is a foreground automatic batching equipment and it work with concrete mixer.according to users’concrete ratio,It can automatically complete sand, stone, cement and other kinds of materials 3-6 (two concrete) ingredients program.
• The series is designed based on the technical standards of GB10172 "concrete mixing station technical conditions" batching system.the machine use electronic weighing,computer controlling,digital displaying and limited remote operating.the advantages are high weighing accuracy,high dosing accuracy,speed and strong control functions.the operation is very easy, it just need to click on a button.
• This series of concrete batching machine with corresponding concrete mixer, can be composed of a variety of forms and specifications of modular concrete batching plants.it cost only 1/2-1/3 of the same size concrete mixing plants and it also very easy to install and move.this concrete batching machine is ideal equipment for high quality concrete of on-site production.
| Model | PLD4800 | PLD3200 | PLD2400 | PLD1600(pneumatic) | PLD1600 | PLD1200 | PLD800 | PLD600 |
| Weighing Hopper Volume (L ) | 4x2000 | 4x1500 | 4x1200 | 4x800 | 1600 | 1200 | 800 | 600 |
| Storage Hopper Volume (m3 ) | 4x23 | 4x18 | 4x15 | 4x6 | (2-4)x5 | (2-4)x3.5 | (2-3)x2 | 2x1.4 |
| Productivity(m3 ) | 180 | 160 | 120 | 75 | 75 | 56 | 48 | 18 |
| Accuracy | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Max Weighing(kg) | 8000 | 5000 | 4000 | 3000 | 3000 | 3000 | 2000 | 1500 |
| Materials to Batch | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-4 | 2-3 | 2 |
| Feeding Height(m) | 5 | 4.5 | 3.5 | 3.2 | 3 | 2.9 | 2.4 | 2.4 |
| Feeding Belt Speed(m/s) | 1.25 | 1.4 | 1.25 | 1.25 | 1.4 | 1.25 | 1.25 | 1.25 |
| Power(KW) | 18.5 | 15 | 11 | 11 | (3-5)x5.5 | (3-5)x3 | (3-4)x2.2 | 3x3 |
| Weight(KGS) | 15000 | 12000 | 9800 | 6100 | 4500-5600 | 3500-5000 | 1750-2450 | 1400 |
| Measurement(mm)(LxWxH) | 15080*3200*5000 | 14100*3200*5000 | 13860*2900*3900 | 12000*2300*3500 | (6600-13200)*2200*3500 | (6100-12200)*2200*2680 | (5640-8400)*(1560-2000)*2680 | 3660*1280*2450 |
