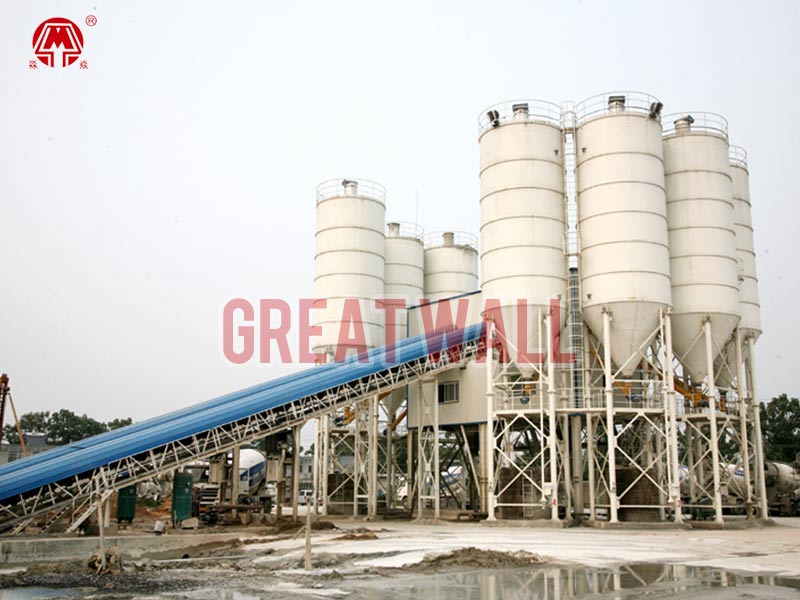

HZS180 Concrete Mixing Plant
- Capacity: 160m3/h- 180m3/h
- Concrete Mixer: SICOMA MAO 4500/3000 Mixer
- Batching Machine: PLD4800 Pneumatic Independent Weighing Batching Machine
- Weighing System: Cement; Water; Additive, Ash Coal
- Control System: Full Automatic Centralized Control System
- Standard: GB/T 10171-2005
Pre:HZS75 Concrete Mixing Plant
Next:Back To List
- Concrete Batching Plant
- Commercial Concrete Batching Plant
- Ready Mix Concrete Plant
- Project Concrete Batching Plant
- Belt Conveyor Concrete Batching Plant
- Concrete Mixer Plant
- Precast Concrete Plant
- Mini Concrete Batching Plant
- Concrete Mixing Plant
- HZS180 Concrete Mixing Plant
- HZS120 Concrete Mixing Plant
- HZS90 Concrete Mixing Plant
- HZS60 Concrete Mixing Plant
- HZS50 Concrete Mixing Plant
- HZS35 Concrete Mixing Plant
- HZS25 Concrete Mixing Plant
- HZS75 Concrete Mixing Plant
- JS Concrete Mixer
- JS1000 Concrete Mixer
- JS750 Concrete Mixer
- JS500 Concrete Mixer
- JS1500 Concrete Mixer
- JS2000 Concrete Mixer
- JS3000 Concrete Mixer
- SICOMA Concrete Machinery
- SICOMA Concrete Mixer MAO Standard Series
- SICOMA Concrete Mixer MEO Economical Series
- SICOMA Concrete Mixer MSO Mini Series
- SICOMA Planetary Concrete Mixer
- SICOMA Cement Screw Conveyor
- SICOMA Butterfly Valve
- SICOMA Dust Collector
Introduction:
We, Zhengzhou Great Wall Machinery Manufacture Co., Ltd, our HZS180 concrete batching plant is forced type high efficiency concrete production equipment. It suits for mixing dry hard, half dry hard, plastic, and other ratios of concrete with features of high production efficiency, high mixing quality, stable and reliable, long lifespan etc.
Part of GREAT WALL 180m3/h Concrete Batching Plant Features:
1) The Mixing System: the mixer is SICOMA MAO4500/3000 twin shaft forced type which has high mixing evenness for concrete, short mixing time, long lifespan for wearing parts, easy operation and maintenance advantages. 4.2 m discharging height. Adjustable hydraulic discharging door angle. High Wear-Resistant Chromium-Manganese Alloys Plates and Blades. Auto lubrications. The main shaft driving system refers to Italian SICOMA technology. Perfect shaft end sealing system effectively prevents leakage and guarantees the continuous long running of whole mixing system.
2) Batching System: using PLD4800 batching machine with high stability and efficiency. The batching aggregates can be 3-5types. 18m3 Basic Storage Bins Volume, 15kw Motor, Belt width of 1000mm.
3) Feeding System: the feeding system is of closed belt type by continuous feeding, the angle is 17°. The belt is of china famous brand and the idler is troughed type, with belt tensioning system and cleaning system, guaranteeing the feeding efficiency and effectively longer the equipment lifespan.
4) The digital weighing system is with buffering device, auto compensation function and very high weighing accuracy. The sensors for the weighing system are of China Famous Brand with assured high weighing accuracy and stability.
5) We use the international advanced full auto control models of integration industry computer. It is with features of Strong Anti-Interference Ability, High Reliability And Stability, Easy Operation And Maintenance, Zero-Failure Rate.
6) All Motors, Speed Reducers, Sensors are of China Famous Brand.
7) 32 National Technical Patents Guarantee Excellent Performance.
8) Modular Design, Space-Saving Integrated Design, Easy Installation and Removal.
9) Aesthetics Designed, the Color and Painted Words can be Customerized Designed by the Buyer.
10) Low Noise and Dust for Your Environmental Protection Requirement Enough.
11) China Well-known Trademark, Brand Protected by <Paris Convention for the Protection of Industry Property>.
Application:
HZS180 concrete mixing plant can be used as commercial ready-mixed concrete batching plant to sell high quality concrete to different buyers. It also widely used in construction projects like buildings, roads, bridges, high way roads, municipal projects,docks, airport, water projects, hydropower station,etc.
OUR TWO PROMISES:
1) We are the only CHINA WELL KNOWN TRADEMARK enterprise in Xingyang Henan, all our equipments is strictly designed and manufactured as per China National Standard Requirement, and high guaranteed on terms of advanced technology, deep technology maturity and promised output capacity.
2) We provide turn-key project solution with all needed equipment and parts (cables and wires are all included). We solemnly promise that, apart from the power and materials, the buyers needs no extra investment for any other parts to run our plant.
Detail Parameters Table:
HZS180 | ||
Theory Productivity(m3/h) | 180 | |
Standard Discharging Height(m) | 4.2 | |
Mix Cycle Time(s) | 60 | |
Measurement(m) | 53*25*21 | |
Total Power(KW) | 275 | |
Mixer Model | SICOMA MAO 4500/3000 | |
Batching Machine Model | PLD4800 Pneumatic Independent Weighing | |
Belt Width mm | 1000 | |
Belt Machine Power kW | 45 | |
Feeding Method | Belt | |
Weighing Accuracy | Aggregate | ≤2 |
Cement and Ash Coal | ≤1 | |
Water | ≤1 | |
Additive*2 | ≤1 | |
Screw Conveyor Model | LSY325 Italy Technology | |
Silo | 4×200t Detachable Silo | |
Control System | Centralized Control | |
MOQ | 1 set | |
Delivery Time | 20days | |
Delivery Port | Qingdao or Tianjin |
