Concrete Mixer Truck
Concrete Mixing Tank
- Type\Project: HJG(Y)-6hydraulic concrete transportation tank
- Mixing drum geometric capacity m3: 8.96
- Mixing drum available capacity m3: 6
- Mixing drum available capacity m3: 5
- Feed rate m3/min: ≥3
- Production rate m3/min: ≥1
(※ Click this button to inquiry)
Next:Back To List
- Concrete Batching Plant
- Commercial Concrete Batching Plant
- Ready Mix Concrete Plant
- Project Concrete Batching Plant
- Belt Conveyor Concrete Batching Plant
- Concrete Mixer Plant
- Precast Concrete Plant
- Mini Concrete Batching Plant
- Concrete Mixing Plant
- HZS180 Concrete Mixing Plant
- HZS120 Concrete Mixing Plant
- HZS90 Concrete Mixing Plant
- HZS60 Concrete Mixing Plant
- HZS50 Concrete Mixing Plant
- HZS35 Concrete Mixing Plant
- HZS25 Concrete Mixing Plant
- HZS75 Concrete Mixing Plant
- JS Concrete Mixer
- JS1000 Concrete Mixer
- JS750 Concrete Mixer
- JS500 Concrete Mixer
- JS1500 Concrete Mixer
- JS2000 Concrete Mixer
- JS3000 Concrete Mixer
- SICOMA Concrete Machinery
- SICOMA Concrete Mixer MAO Standard Series
- SICOMA Concrete Mixer MEO Economical Series
- SICOMA Concrete Mixer MSO Mini Series
- SICOMA Planetary Concrete Mixer
- SICOMA Cement Screw Conveyor
- SICOMA Butterfly Valve
- SICOMA Dust Collector

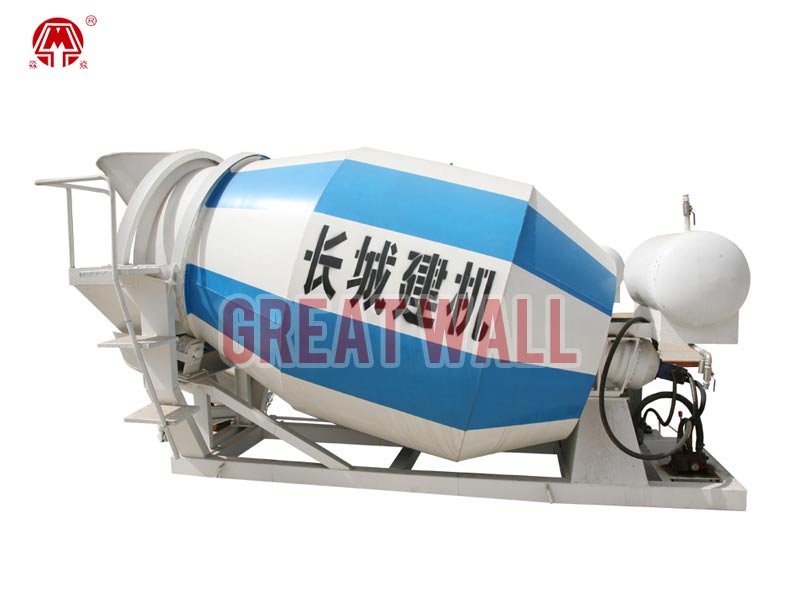

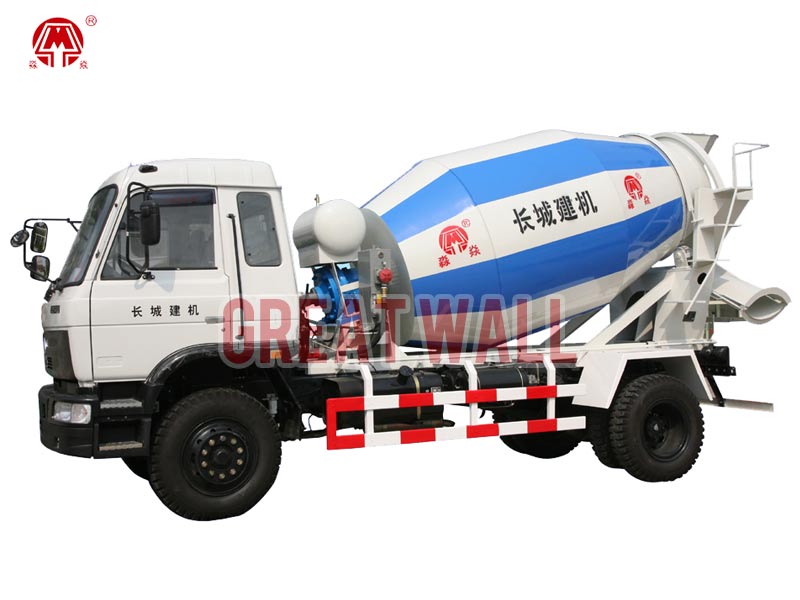

The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.
The machine’s trait:don not rely on the power of outside ,optimal barycenter and structure designing,beautiful and natrual the whole looking,working smoothly.the hydraulic elements use high quality products of national key leading enterprise ,mechanical parts structre is reasonable,easy and simple to handle and have reiable operation.the car’s mixing drum can keep turning on the road,avoiding the slurry discrete and sediment.It can insure the quality in the process of mixtrue slurry in transportation.
Main Parameters:
| Type\Project | HJG(Y)-3hydraulic concrete transportation tank | HJG(Y)-6hydraulic concrete transportation tank | HJG(Y)-8hydraulic concrete transportation tank |
| Mixing drum geometric capacity m3 | 5.05 | 8.96 | 10.50 |
| Mixing drum available capacity m3 | 3 | 6 | 8 |
| Mixing drum available capacity m3 | 2.5 | 5 | 7 |
| Filling rate % | 0.67 | 0.67 | 0.67 |
| Feed rate m3/min | ≥3 | ≥3 | ≥3.6 |
| Production rate m3/min | ≥1 | ≥1 | ≥1.2 |
| Rest rate% | ≤1 | ≤1 | ≤1.2 |
| Rotary speed r/min | 0～10 | 0～8 | 0～20 |
| Axis angle | 16° | 16°±15′ | 15°±15′ |
| Inlet height M | 3.1 | 3.3 | 3.6 |
| Minimum height of material M | 1 | 1 | 1.2 |
| Mixing drum specification(length×width×height）（mm） | 2800×1750×1800 | 3790×2100×2000 | 4750×2200×2200 |
| Unity machine dimension(length×width×height）（mm） | 4150×2500×2150 | 5250×2250×2450 | 6550×2250×2950 |
| Total weight kg | 3000 | 4500 | 6000 |
The concrete mixer machine transportation tank mix tube and 4.5 T dump truck chassis with 2 u-bolt and special mat iron can be firmly installed one ,and form the concrete transport tank.the main use is to transport mixtrue concrete to destination on time and quickly.this tank also can be used as mixing drum.
The machine’s trait:don not rely on the power of outside ,optimal barycenter and structure designing,beautiful and natrual the whole looking,working smoothly.the hydraulic elements use high quality products of national key leading enterprise ,mechanical parts structre is reasonable,easy and simple to handle and have reiable operation.the car’s mixing drum can keep turning on the road,avoiding the slurry discrete and sediment.It can insure the quality in the process of mixtrue slurry in transportation.
Main Parameters:
| Type\Project | HJG(Y)-3hydraulic concrete transportation tank | HJG(Y)-6hydraulic concrete transportation tank | HJG(Y)-8hydraulic concrete transportation tank |
| Mixing drum geometric capacity m3 | 5.05 | 8.96 | 10.50 |
| Mixing drum available capacity m3 | 3 | 6 | 8 |
| Mixing drum available capacity m3 | 2.5 | 5 | 7 |
| Filling rate % | 0.67 | 0.67 | 0.67 |
| Feed rate m3/min | ≥3 | ≥3 | ≥3.6 |
| Production rate m3/min | ≥1 | ≥1 | ≥1.2 |
| Rest rate% | ≤1 | ≤1 | ≤1.2 |
| Rotary speed r/min | 0～10 | 0～8 | 0～20 |
| Axis angle | 16° | 16°±15′ | 15°±15′ |
| Inlet height M | 3.1 | 3.3 | 3.6 |
| Minimum height of material M | 1 | 1 | 1.2 |
| Mixing drum specification(length×width×height）（mm） | 2800×1750×1800 | 3790×2100×2000 | 4750×2200×2200 |
| Unity machine dimension(length×width×height）（mm） | 4150×2500×2150 | 5250×2250×2450 | 6550×2250×2950 |
| Total weight kg | 3000 | 4500 | 6000 |
